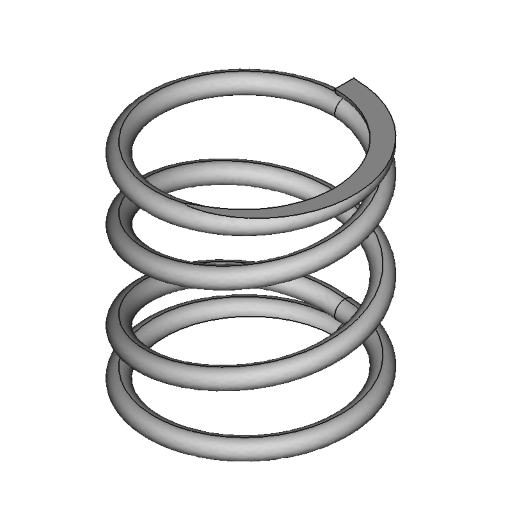

C.045.050.0160.A
€1.27
In stock
Details
- Product Name: C.045.050.0160.A
- Wire Diam. (mm): 0.5
- Ext. Diam. (mm): 4.5
- Internal Diameter (mm): 3.5
- Nr of Coils: 11.7
- Free Len. (mm): 16
- Pitch (mm): 1.55
- Shaft (mm): 3.4125
- Length @max load (mm): 7.05
- Spring Rate (daN/mm): 0.103
- Block Length(mm): 6.1
- Hole (mm): 4.6125
- Buckling at length (mm): 0
- Weight (g): 0.228036
- Endurance: 10000000
- Grinding: 1
- Material: Music Wire
| Product Name | C.045.050.0160.A |
|---|---|
| Wire Diam. (mm) | 0.5 |
| Ext. Diam. (mm) | 4.5 |
| Internal Diameter (mm) | 3.5 |
| Nr of Coils | 11.7 |
| Free Len. (mm) | 16 |
| Pitch (mm) | 1.55 |
| Shaft (mm) | 3.4125 |
| Length @max load (mm) | 7.05 |
| Spring Rate (daN/mm) | 0.103 |
| Block Length(mm) | 6.1 |
| Hole (mm) | 4.6125 |
| Buckling at length (mm) | 0 |
| Weight (g) | 0.228036 |
| Endurance | 10000000 |
| Grinding | 1 |
| Material | Music Wire |
