C.034.035.0300.AP

€1.61

In stock

Only 3 left

Details

Product Name: C.034.035.0300.AP
Wire Diam. (mm): 0.35
Ext. Diam. (mm): 3.4
Internal Diameter (mm): 2.7
Nr of Coils: 16.8
Free Len. (mm): 30
Pitch (mm): 1.98
Shaft (mm): 2.6325
Length @max load (mm): 12.95
Spring Rate (daN/mm): 0.036434
Block Length(mm): 6.4
Hole (mm): 3.485
Buckling at length (mm): 26.48
Weight (g): 0.123840
Endurance: 10000000
Grinding: 0
Material: Music Wire

Show More..

CAD File

Skip to the end of the images gallery

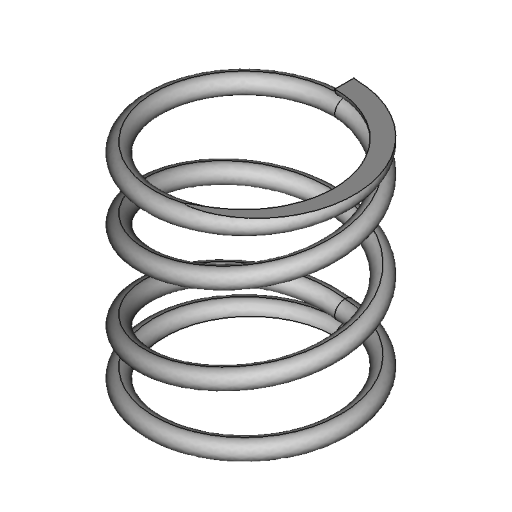

main product photo

Skip to the beginning of the images gallery

Technical Information

Technical Information
Product Name	C.034.035.0300.AP
Wire Diam. (mm)	0.35
Ext. Diam. (mm)	3.4
Internal Diameter (mm)	2.7
Nr of Coils	16.8
Free Len. (mm)	30
Pitch (mm)	1.98
Shaft (mm)	2.6325
Length @max load (mm)	12.95
Spring Rate (daN/mm)	0.036434
Block Length(mm)	6.4
Hole (mm)	3.485
Buckling at length (mm)	26.48
Weight (g)	0.123840
Endurance	10000000
Grinding	0
Material	Music Wire
