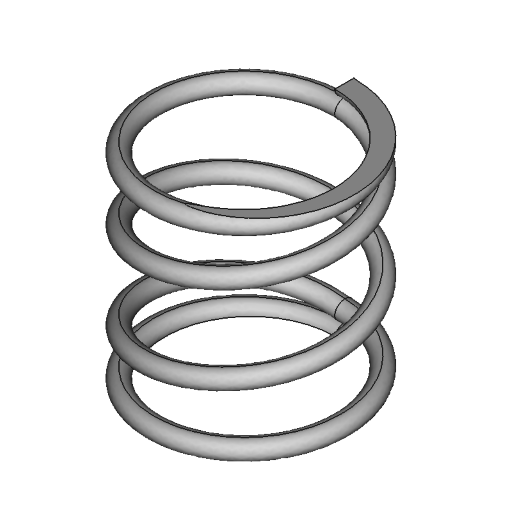

C.020.032.0125.AP
€1.61
In stock
Details
- Product Name: C.020.032.0125.AP
- Wire Diam. (mm): 0.32
- Ext. Diam. (mm): 2
- Internal Diameter (mm): 1.36
- Nr of Coils: 16.3
- Free Len. (mm): 12.5
- Pitch (mm): 0.82
- Shaft (mm): 1.3328
- Length @max load (mm): 7.48
- Spring Rate (daN/mm): 0.157661
- Block Length(mm): 5.69
- Hole (mm): 2.04
- Buckling at length (mm): 9.75
- Weight (g): 0.054898
- Endurance: 10000000
- Grinding: 0
- Material: Music Wire
| Product Name | C.020.032.0125.AP |
|---|---|
| Wire Diam. (mm) | 0.32 |
| Ext. Diam. (mm) | 2 |
| Internal Diameter (mm) | 1.36 |
| Nr of Coils | 16.3 |
| Free Len. (mm) | 12.5 |
| Pitch (mm) | 0.82 |
| Shaft (mm) | 1.3328 |
| Length @max load (mm) | 7.48 |
| Spring Rate (daN/mm) | 0.157661 |
| Block Length(mm) | 5.69 |
| Hole (mm) | 2.04 |
| Buckling at length (mm) | 9.75 |
| Weight (g) | 0.054898 |
| Endurance | 10000000 |
| Grinding | 0 |
| Material | Music Wire |
