C.250.220.0500.AP

€2.88

In stock

Only 1 left

Details

Product Name: C.250.220.0500.AP
Wire Diam. (mm): 2.2
Ext. Diam. (mm): 25
Internal Diameter (mm): 20.6
Nr of Coils: 5.6
Free Len. (mm): 50
Pitch (mm): 12.8
Shaft (mm): 19.982
Length @max load (mm): 22.02
Spring Rate (daN/mm): 0.565484
Block Length(mm): 13.42
Hole (mm): 25.75
Buckling at length (mm): 0
Weight (g): 12.088933
Endurance: 10000000
Grinding: 1
Material: Stainless Steel

Show More..

CAD File

Skip to the end of the images gallery

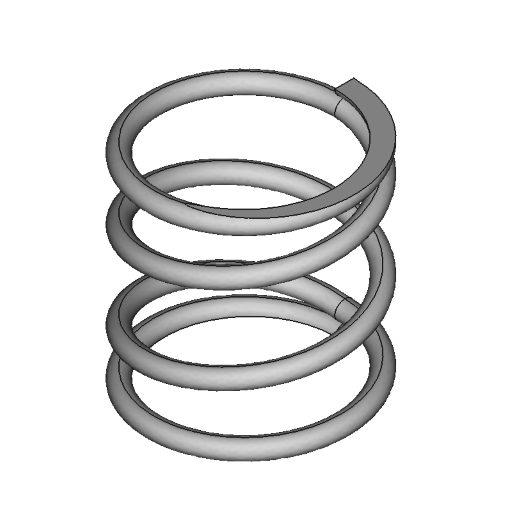

main product photo

Skip to the beginning of the images gallery

Technical Information

Technical Information
Product Name	C.250.220.0500.AP
Wire Diam. (mm)	2.2
Ext. Diam. (mm)	25
Internal Diameter (mm)	20.6
Nr of Coils	5.6
Free Len. (mm)	50
Pitch (mm)	12.8
Shaft (mm)	19.982
Length @max load (mm)	22.02
Spring Rate (daN/mm)	0.565484
Block Length(mm)	13.42
Hole (mm)	25.75
Buckling at length (mm)	0
Weight (g)	12.088933
Endurance	10000000
Grinding	1
Material	Stainless Steel
